ALCo C-420

All acquired secondhand from L&HR and LV. As the result of an accident, #410 received a new nose made from a N&W high short nose. This resulted in a low nose with notches like an RS11/36. The #401 (ex-L&HR) went to the Arkansas & Missouri Railroad as #58.

In early 1976 through 1977, the Delaware & Hudson found itself with an ever increasing need for extra motive power.  This was due to the newly acquired trackage rights that was brought on by the formation of Conrail.

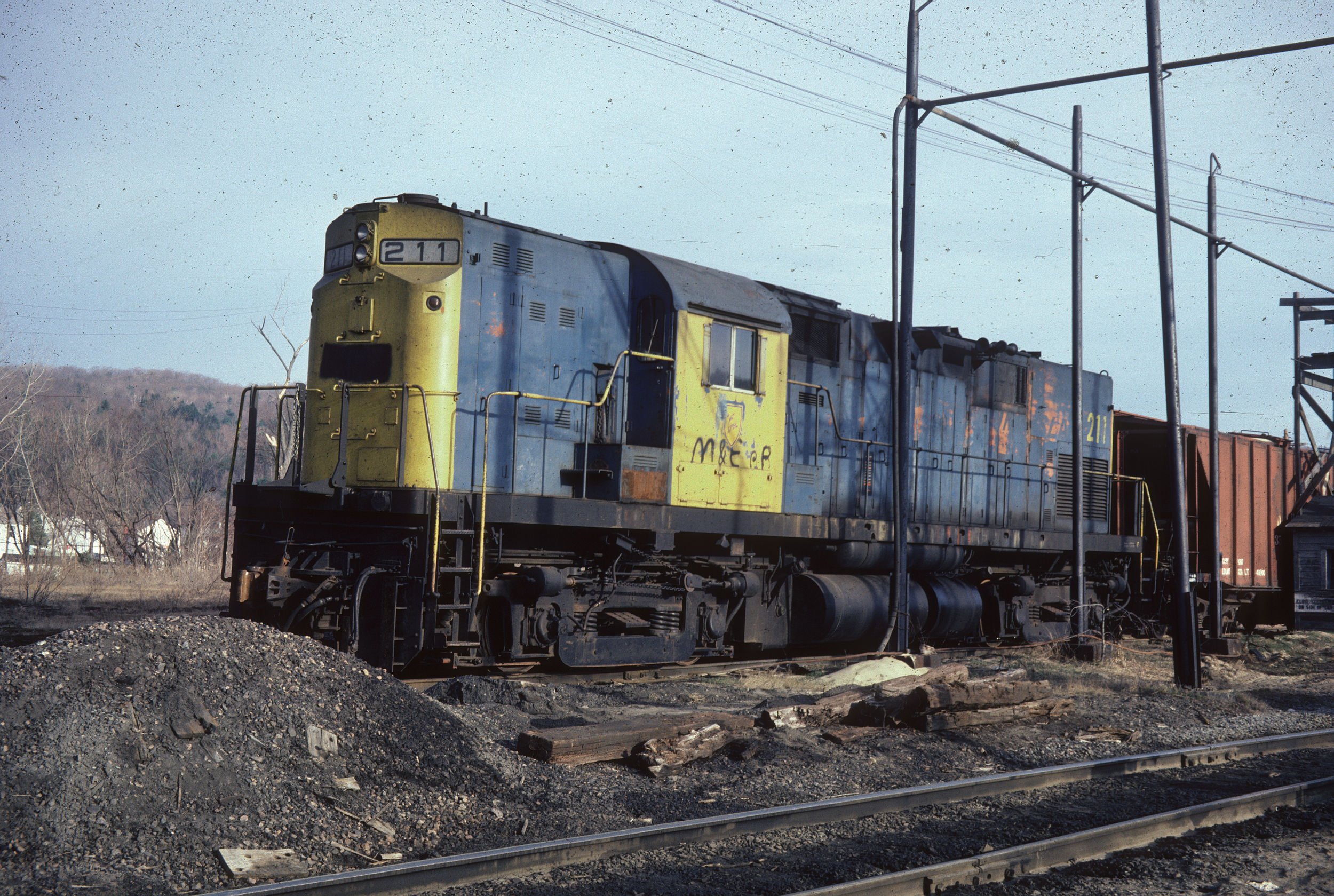

In March of 1976 and then later in September of that year - the D&H Shops at Colonie, NY were used to store several former Long Island Rail Road high hood ALCo C-420s that were being returned back to their original owner, the Railway Traction Company, as their leases had expired. Seizing the opportunity to gain more ALCo motive power, the D&H leased several of these units for their own use in 1977. All of the locomotives were quickly pressed into service - still wearing their MTA paint scheme, and keeping their original 200-series road numbers - while only receiving a small D&H shield on the sides of the cab to signify their new operator. As these locomotives did not have dynamic brakes, they were mostly used in the northern divisions of the railroad, where the terrain was not quite so mountainous. Their tenure on the Delaware & Hudson was indeed a short one, as by the end of 1977, all the LIRR units were either sold off or leased to other railroads.

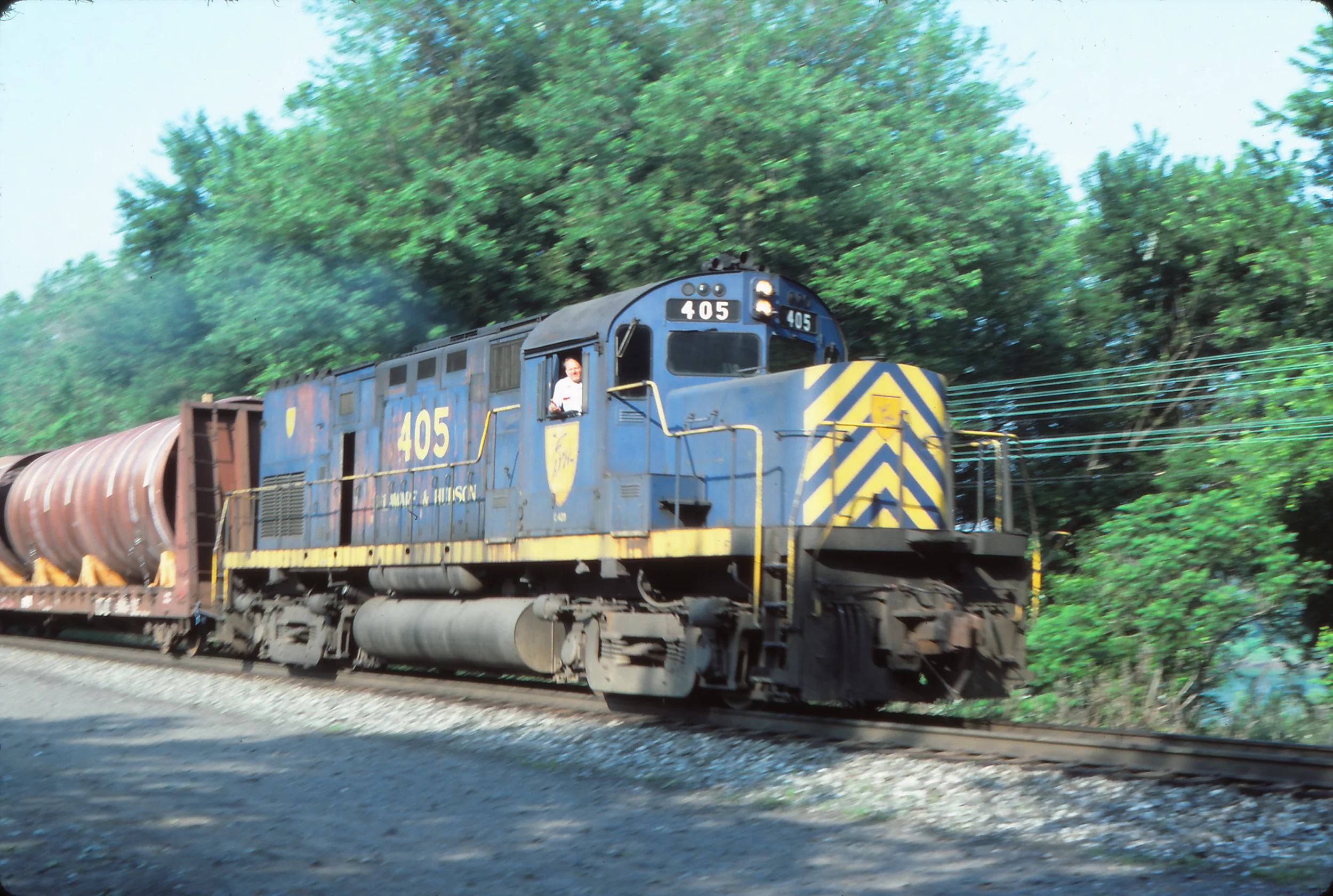

D&H C-420 #405 is on the head end of ENTY in Sunbury, PA on June 9, 1984. Reuben S. Brouse photo, The Garbely Publishing Company collection

D&H C-420 #414 at Colonie in September of 1976. The Garbely Publishing Company collection

Delaware & Hudson Railway
ALCo C-420 Roster (Class ARS-20)
No.ModelBuilderSerialBuiltRetiredNotesPhotos
200C-420ALCo8472212/196312/1977High short hood. Built as LIRR #200. Leased temporarily in 1/1977, left D&H property in 12/1977.
201C-420ALCo8472312/196312/1977High short hood. Built as LIRR #201. Leased temporarily in 1/1977, left D&H property in 12/1977.
202C-420ALCo8472412/196312/1977High short hood. Built as LIRR #202. Leased temporarily in 1/1977, left D&H property in 12/1977.
203C-420ALCo8472512/196312/1977High short hood. Built as LIRR #203. Leased temporarily in 1/1977, left D&H property in 12/1977.
204C-420ALCo847261/196412/1977High short hood. Built as LIRR #204. Leased temporarily in 1/1977, left D&H property in 12/1977.
205C-420ALCo847272/196412/1977High short hood. Built as LIRR #205. Leased temporarily in 1/1977, left D&H property in 12/1977.
206C-420ALCo847282/196412/1977High short hood. Built as LIRR #206. Leased temporarily in 1/1977, left D&H property in 12/1977.
207C-420ALCo847292/196412/1977High short hood. Built as LIRR #207. Leased temporarily in 1/1977, left D&H property in 12/1977.
208C-420ALCo847792/196412/1977High short hood. Built as LIRR #208. Leased temporarily in 1/1977, left D&H property in 12/1977.
209C-420ALCo847803/196412/1977High short hood. Built as LIRR #209. Leased temporarily in 1/1977, left D&H property in 12/1977.
401C-420ALCo3463-037/1966Sold 1987Low short hood. Built as L&HR #29, to CR #2077, sold as D&H #401 in 1980. Later renumbered to D&H #420 under Guilford. Now running as A&M #58.
404C-420ALCo3385-0111/1964Sold 1987Low short hood. Built as LV #404, to D&H on 4/1/1976.
405C-420ALCo3385-0211/1964Sold 1987Low short hood. Built as LV #405, to D&H on 4/1/1976. Later renumbered to D&H #422 under Guilford. Now running as D-L #405.
406C-420ALCo3385-0311/1964Sold 1987Low short hood. Built as LV #406, to D&H on 4/1/1976. Later renumbered to D&H #416 under Guilford.
407C-420ALCo3385-0411/1964Sold 1987Low short hood. Built as LV #407, to D&H on 4/1/1976. Later renumbered to D&H #417 under Guilford.
408C-420ALCo3385-0511/1964Sold 1987Low short hood. Built as LV #408, to D&H on 4/1/1976.
409C-420ALCo3385-0612/1964Sold 1987Low short hood. Built as LV #409, to D&H on 4/1/1976. Later renumbered to D&H #419 under Guilford.
410C-420ALCo3385-0712/1964Sold 1987Low short hood. Built as LV #410, to D&H on 4/1/1976. Damaged and rebuilt with cut-down high nose from N&W C-420 with notched corners.Link
411C-420ALCo3385-0812/1964Sold 1987Low short hood. Built as LV #411, to D&H on 4/1/1976.
412C-420ALCo3385-0912/1964Sold 1987Low short hood. Built as LV #412, to D&H on 4/1/1976.
413C-420ALCo3385-1012/1964Sold 1987Low short hood. Built as LV #413, to D&H on 4/1/1976.Link
414C-420ALCo3385-1112/1964Sold 1987Low short hood. Built as LV #414, to D&H on 4/1/1976. Now running (in LV yellowjacket paint) as D-L #414.
415C-420ALCo3385-1112/1964Sold 1987Low short hood. Built as LV #415, to D&H on 4/1/1976.

ALCo C-420 Data
Engine12-cylinder 251C
TrucksB-B
Truck TypeAAR Type B
Fuel (gals.)3,100
Sand (cu. ft.)
Weight (lbs.)262,000
Horsepower2,000 hp
Traction MotorsGE 752
Tractive Effort57,200 lbs.
Gearing74:18 / 64:19

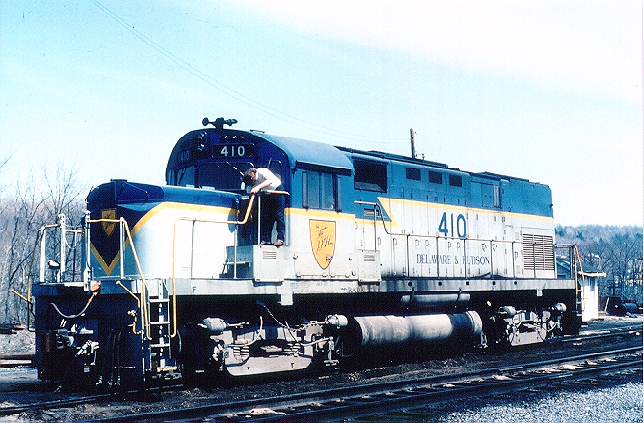

D&H 410
One of a kind C420 #410, with notches in the nose like an RS series loco. As a result of an accident, 410 was fitted with a cut down high nose, supplied by the then sister road Norfolk & Western, when the D&H was under Dereco control. Bill Mischler photo

D&H 413
Not long after 'Conveyance Day', C420 #413 sits at Mechanicville, still in its previous owners colors -- note the hurriedly applied D&H logo on the nose and the white line striking through 'Lehigh' on the side. Bill Mischler photo
